Switchgear operation and insulation checks for utilities

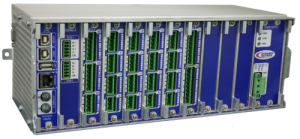

Recorded breaker operations and bus discharge activity connect switchgear conditions with utility maintenance planning. Dynamic Ratings combines the Switchgear Monitor, or SWGM, with the Switchgear and Cable Monitor, or SCM, for complementary measurements. Engineers review mechanical-operation signatures and insulation activity across the monitored equipment.

The SWGM captures operation waveforms for comparison with stored reference signatures. Coil and contact records show changes in the breaker operating sequence. The SCM adds partial-discharge monitoring for the switchgear bus and connectors, storing the pulses alongside operating dynamics. Coupling capacitors and current probes provide the discharge inputs. These records give staff separate views of mechanical operation and electrical insulation rather than merging them into one assumed fault diagnosis.

DynamicMetrix Desktop, the single-monitor diagnostic tool, is included with the SWGM. Engineers examine the captured signatures and relevant trends before arranging an inspection. DynamicMetrix Fleet, the licensed wider-asset tool, retrieves records from multiple monitors for shared review. The combined waveform and discharge histories support a maintenance discussion about the affected bay, connector or breaker mechanism and provide earlier operating records for comparison after the work.
